Benq AH500st

Product Photos & Video Gallery

BenQ-AH500ST-4000-Lumen-Short-Throw-1080P-Laser-Golf-Simulator-Projector-product-dimensions_1200x

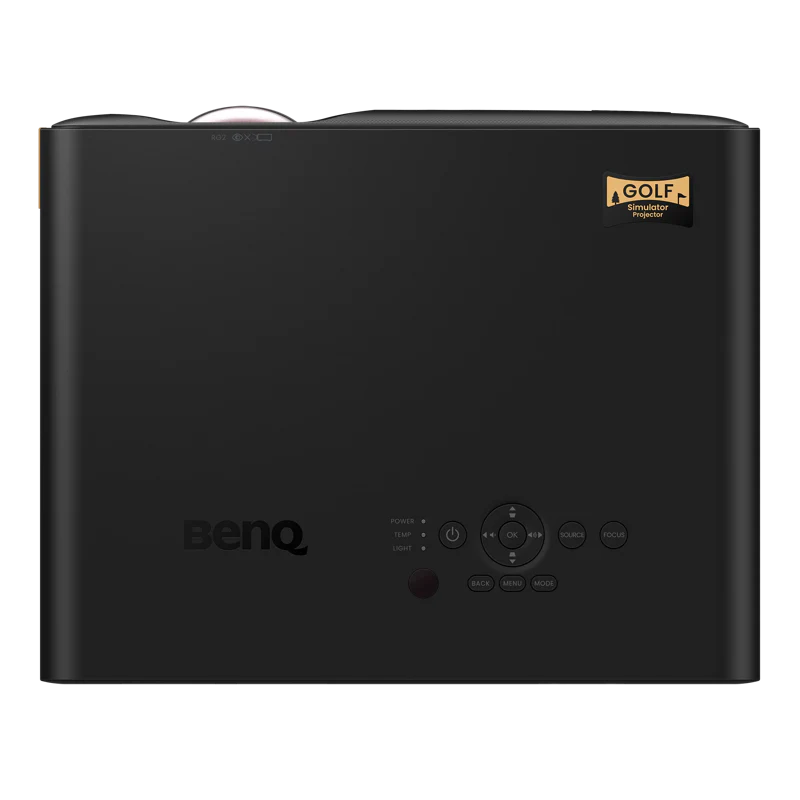

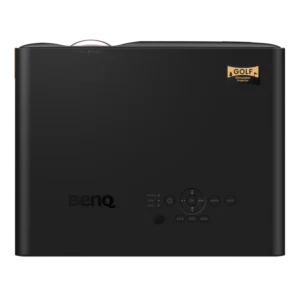

BenQ-AH500ST-4000-Lumen-Short-Throw-1080P-Laser-Golf-Simulator-Projector-top-view-with-controls_1200x

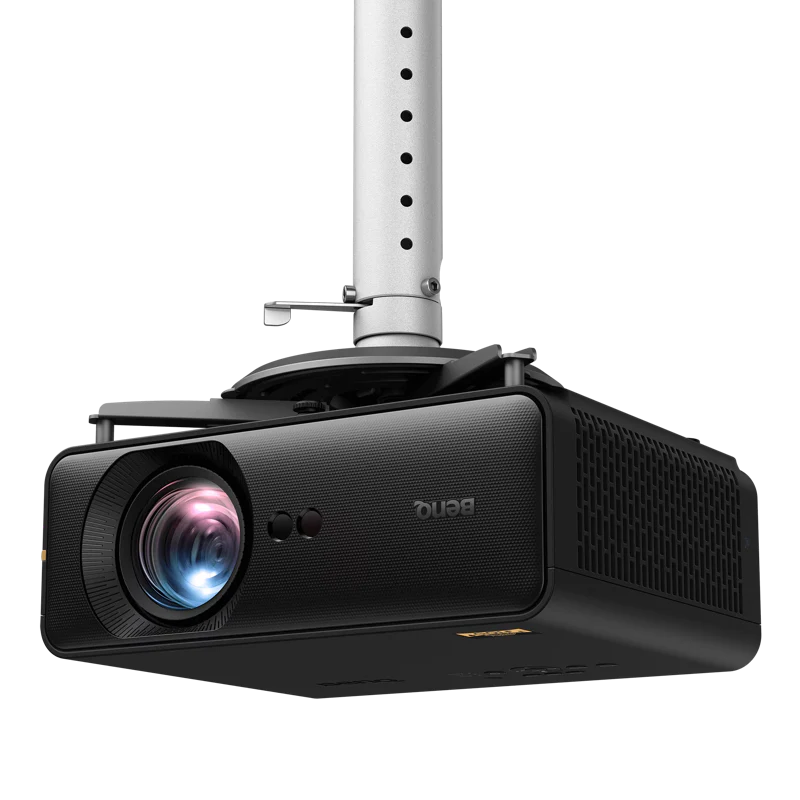

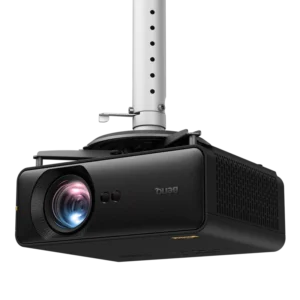

BenQ-AH500ST-4000-Lumen-Short-Throw-1080P-Laser-Golf-Simulator-Projector-ceiling-mounted-view_1200x

Benq AH500st

  • Brightness (ANSI lumens) 4000
  • Light Source Laser
  • Light Source Life a. Normal 20000 hrs, b. ECO 38000 hrs

$1,999.00

- +

Swing Big in the Smallest Space

The AH500ST is designed for home golf simulation in small spaces. Experience immersive gameplay with vibrant colors, and easy installation features

Short Throw Lens Without Worry About Shadows

BenQ AH500ST maximizes your space and delivers a realistic golf experience at home.

Screen Fill

BenQ’s exclusive Screen Fill feature automatically switches to 1:1, 4:3, 16:9, or 16:10 native resolutions, ensuring the image fully fills the screen without distortion.

Durable Laser Technology

The AH500ST Laser projector guarantees up to 20,000 hours of light source life, reducing costs associated with lamp replacements and maintenance.

All Specifications

Display

  • Brightness (ANSI lumens)
    4000
  • Resolution
    1080P (1920×1080)
  • Native Aspect Ratio
    16:9
  • Contrast Ratio (FOFO)
    3,000,000:1
  • Display Color
    30-bit (1.07 billion colors)
  • Light Source
    Laser
  • Light Source Life
    a. Normal 20000 hrs, b. ECO 38000 hrs
  • Screen Fill
    16:9,16:10,4:3,1:1
  • Quick Focus
    Yes

Optical

  • Throw Ratio
    0.499
  • Zoom Ratio
    Fixed
  • Lens
    F#=2.8 f=7.46mm
  • Projection Offset (Full-Height)
    112%
  • Keystone Adjustment
    2D, Vertical ± 30 degrees; Horizontal ± 30 degrees


  • Rec. 709 Coverage
    83%
  • Picture Modes
    3D, Cinema, Game, Golf, HDR10, HLG, sRGB, User 1, User 2

Compatibility

  • Input Lag
    16.7 ms (1080P 120Hz), 33.4 ms (1080P 60Hz)
  • Resolution Support
    VGA (640 x 480) to 4K UHD (3840 x 2160)
  • Horizontal Frequency
    15K~102KHz
  • Vertical Scan Rate
    23~120Hz

I/O Interface

  • HDMI in
    HDMI-1 (2.0a/HDCP2.2), HDMI-2 (2.0a/HDCP2.2)
  • LAN (RJ45)
    (x1)
  • USB Type A
    (x1), USB Type A-4 (2.0/Wireless Dongle)
  • USB Type Mini B
    (x1), USB Type Mini B-1(service)
  • RS232 in (DB-9pin)
    (x1)

Audio

  • Speaker
    (x1), 10W
  • Audio out (3.5mm Mini Jack)
    (x1)

Environment

  • Operating Temperature
    0~40℃
  • Power Supply
    AC 100 to 240 V, 50/60 Hz
  • Typical Power Consumption (110V)
    250W@110Vac
  • Stand-by Power Consumption
    <0.5W
  • Network Stand-by Power Consumption
    <2W
  • Acoustic Noise (Typ./Eco.)(dB)
    35/32

Accessories

  • Wireless USB dongle
    EZC-5201BS 1080p, (Optional)
  • Remote Control w/ Battery
    RCE018
  • Power Cord (by region)
    x1 (3.0M)
  • Quick Start Guide
    (x1) 18L
  • Warranty Card (by region)
    Yes
  • Lens cover
    Yes

Dimension & Weight

  • Dimensions (WxHxD) (mm)
    320.0 x 130.6 x 255
  • Net Weight (kg)
    5.1
  • Dimensions (WxHXD) (inch)
    12.60 x 5.14 x 10.04
  • Net Weight (lb)
    11.2

Projection System

  • Projection System
    DLP
